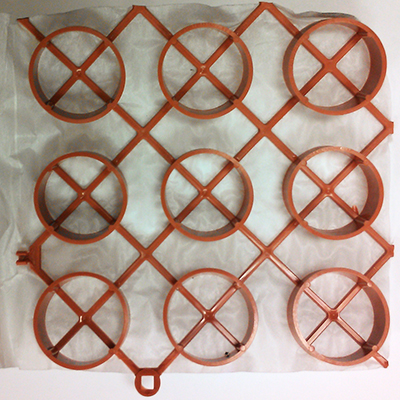

Invisible Structures Gravelpave 2

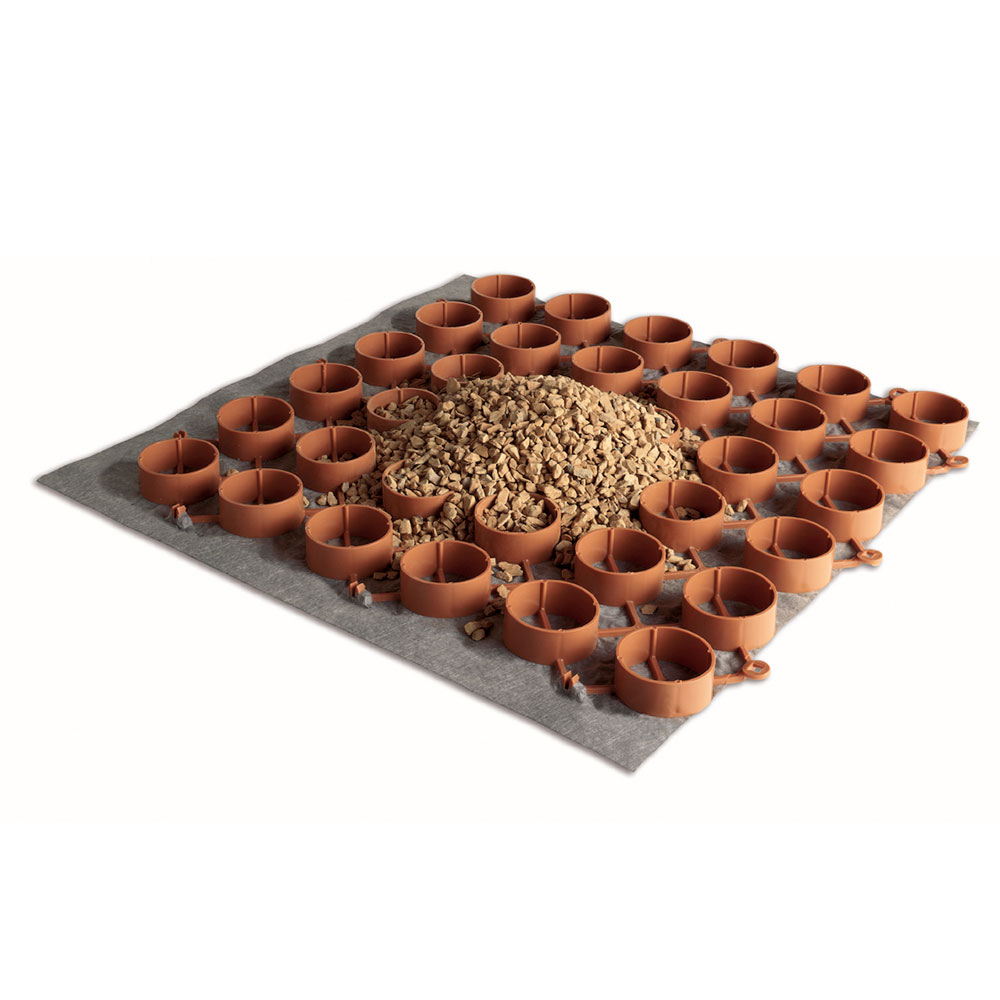

Gravelpave2 porous gravel paver allows you to park, drive, walk, or ride on a beautiful decorative gravel surface.
Porous Gravel Paver
- Pervious Load Bearing Surface
- Stormwater Pollution Filtration and Treatment
- Heat Energy Reflection Reduction, “Cool” Surface
- Tree Growth within Parking Areas
- 15,940 psi Compressive Strength (2.29 million psf / 109,906 kPa) – see test
- Large Rolls for Easy Installation
- 92% Void Space for Increased Porosity and Gravel Integrateion
Applications
- All Parking Aisles and Bays
- Handicap Parking Spaces
- Automobile and Truck Storage Yards
- All Service and Access Drives
- Loading Dock Areas
- Trails for Multiple Uses
- Boat Ramps
- Outdoor Bulk Storage Areas
- Infiltration Basins
- High-Use Pedestrian Areas
Gravelpave2 is a structure to provide heavy load bearing support and true containment of gravel to create a porous surface with unlimited traffic volume and/or duration time for parking. The system can be used for storage and filtration of rainwater. For example, a cross-section with an 12″ deep base course (at 20% void space) and the one inch of Gravelpave2 (at 35%) would store 2.75″ of rain. Although bacteria concentrations are lower than with Grasspave2, polluted runoff and vehicle drippings are consumed prior to reaching the water table.
